==IMPACT SOCKET（氣動(dòng)套筒）== |
|

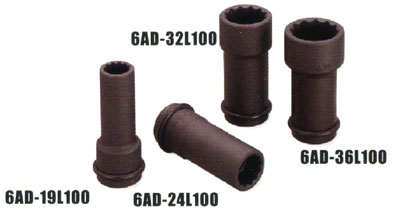

日本TONE前田氣動(dòng)套筒型號(hào)：6AD-17L100、6AD-19L100、6AD-21L100、6AD-22L100、6AD-23L100、6AD-24L100、6AD-26L100、6AD-27L100、6AD-28L100、6AD-29L100、6AD-30L100、6AD-32L100、6AD-35L100、6AD-36L100、6AD-38L100、6AD-41L100、6AD-46L100 |
|
|
|
 |
|
|
|

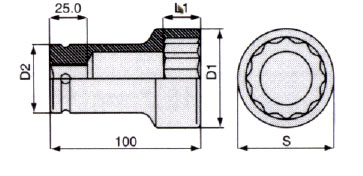

LONG IMPACT SOCKET(12pt.) |
|
Item No. |
S(mm) |
D1(mm) |
D2(mm) |
L(mm) |
| 6AD-17L100 |
17 |
27.5 |
38.0 |
13.0 |
| 6AD-19L100 |
19 |
29.0 |
38.0 |
14.0 |
| 6AD-21L100 |
21 |
31.5 |
38.0 |
15.0 |
| 6AD-22L100 |
22 |
33.0 |
38.0 |
15.0 |
| 6AD-23L100 |
23 |
34.5 |
38.0 |
15.0 |
| 6AD-24L100 |
24 |
36.0 |
38.0 |
17.0 |
| 6AD-26L100 |
26 |
38.0 |
38.0 |
19.0 |
| 6AD-27L100 |
27 |
40.0 |
38.0 |
19.0 |
| 6AD-28L100 |
28 |
40.0 |
38.0 |
20.0 |
| 6AD-29L100 |
29 |
42.0 |
38.0 |
20.0 |
| 6AD-30L100 |
30 |
44.0 |
40.0 |
21.0 |
| 6AD-32L100 |
32 |
46.5 |
40.0 |
21.0 |
| 6AD-35L100 |
35 |
50.0 |
40.0 |
23.0 |
| 6AD-36L100 |
36 |
52.0 |
40.0 |
23.0 |
| 6AD-38L100 |
38 |
56.0 |
40.0 |
23.0 |
| 6AD-41L100 |
41 |
59.0 |
40.0 |
23.0 |
| 6AD-46L100 |
46 |
65.0 |
40.0 |
23.0 |
|
|
|
|
 |
|
|
|
