型號：DG8HWP-4.3,DG10HWP-4.3,DG12HWP-4.3,DG14HWP-4.3,DG16HWP-4.3,DG18HWP-4.3 |
|
底部 |
H型底部加高4.3mm
|
|
材質(zhì) |
尼龍66, UL94V-2
|
|
溫度 |
110°C
|
|
接線排數(shù) |
2-12排
|
|
型號
|
線徑(mm2)
|
安培
|
電壓
|
螺絲
|

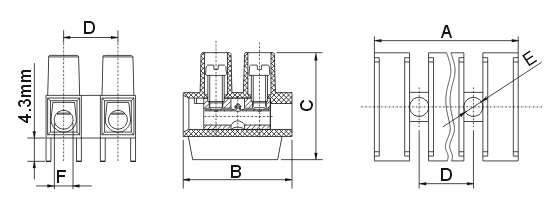

尺寸(mm/in.)
|
|
Unit
|
A
|
B
|
C
|
D
|
E
|
F
|
|
DG8HWP-4.3
|
1.5
|
17.5A
|
450V
|
M2.6X5
|
(mm)
|
93.5
|
17.8
|
15.50
|
8.00
|
3.00
|
2.80
|
|
DG10HWP-4.3
|
2.5
|
24A
|
450V
|
M3.0X6
|
(mm)
|
116.5
|
20.0
|
16.70
|
10.00
|
3.50
|
3.30
|
|
DG12HWP-4.3
|
6.0
|
41A
|
750V
|
M3.5X7
|
(mm)
|
140.7
|
23.80
|
19.00
|
12.00
|
3.90
|
3.90
|
|
DG14HWP-4.3
|
10.0
|
57A
|
750V
|
M4X9
|
(mm)
|
158.0
|
25.60
|
25.20
|
13.50
|
4.40
|
4.80
|
|
DG16HWP-4.3
|
16.0
|
76A
|
750V
|
M4X9
|
(mm)
|
169.8
|
28.80
|
23.00
|
14.50
|
4.20
|
6.00
|
|
DG18HWP-4.3
|
25.0
|
101A
|
750V
|
M5X11
|
(mm)
|
194.4
|
36.90
|
28.70
|
16.50
|
4.20
|
7.50
|
|
|
| |
|
|
